PicoPH: a Raspberry Pi Pico pH/EC monitor

A DIY water-quality monitor for the hydroponic garden. A Pi Pico reading pH and EC probes through signal-conditioning boards, in a 3D-printed enclosure I designed by hand-sketch.

electronicsraspberry-pi-picohydroponics3D printing

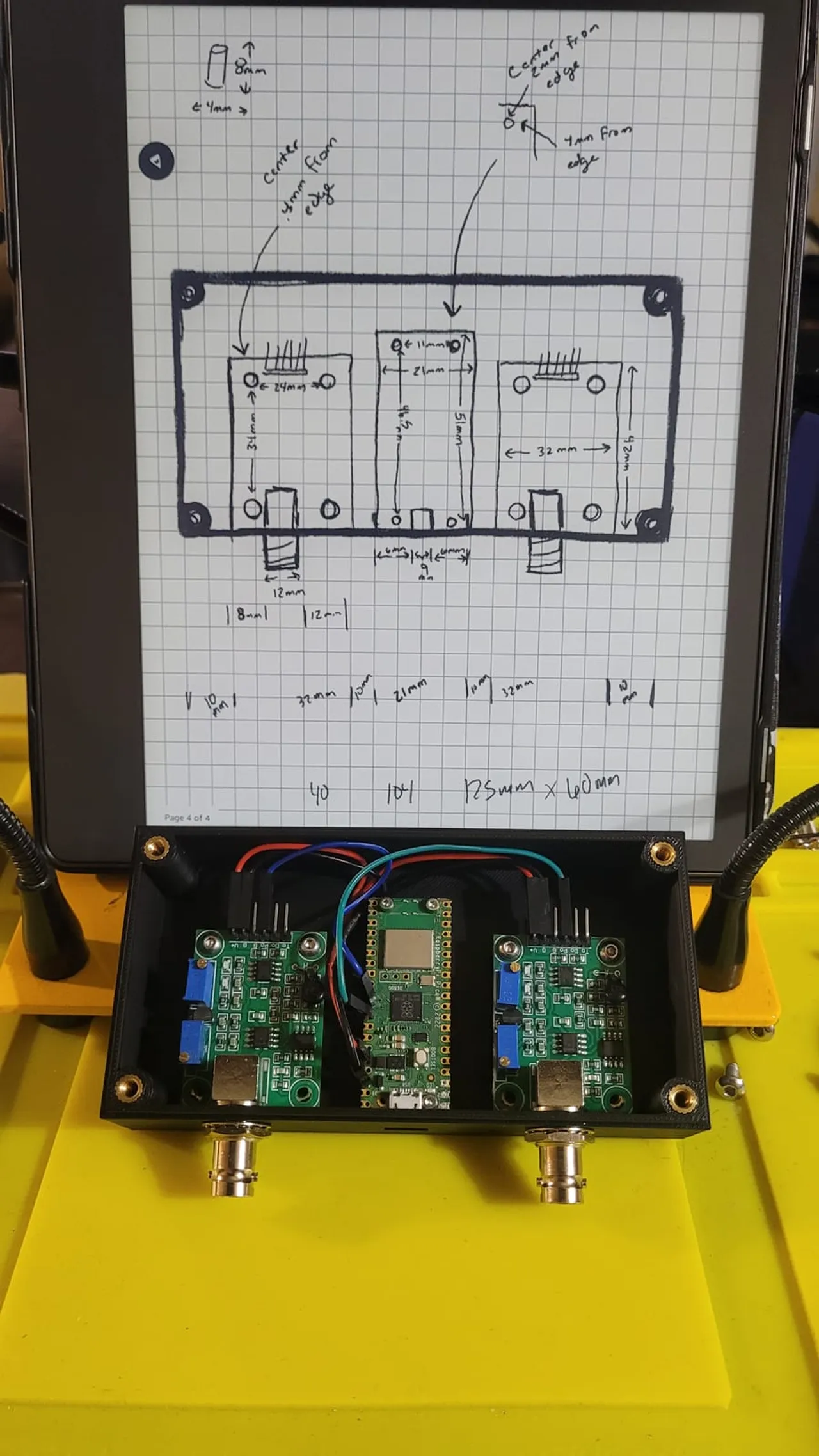

A 3D-printed enclosure holding a Raspberry Pi Pico and sensor boards, beside the hand-drawn design sketch

Hydroponics lives and dies on water chemistry: pH and EC (how strong the nutrient solution is). Buying a commercial monitor is easy; building one teaches you what the numbers mean. So I built PicoPH.

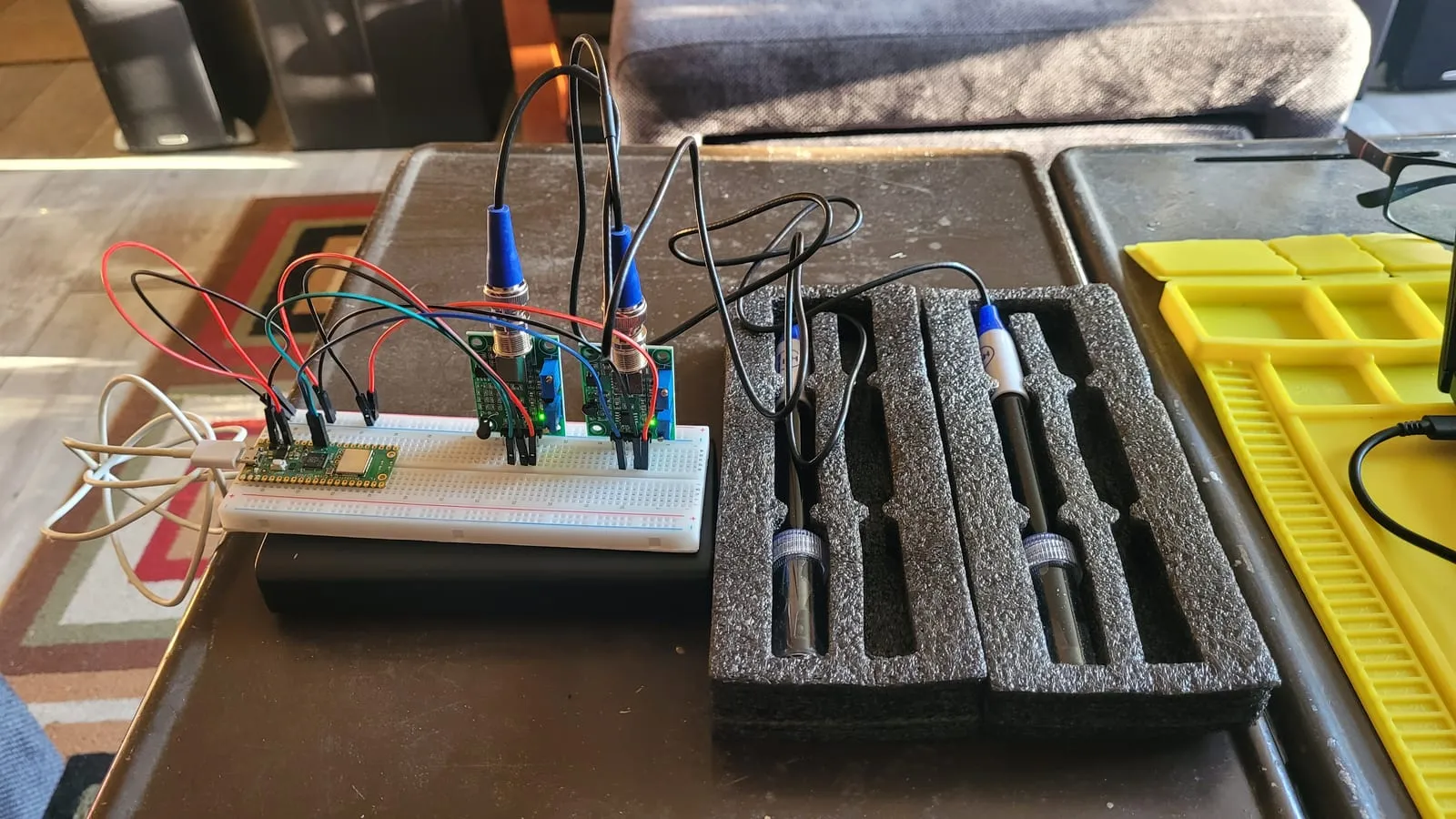

A Raspberry Pi Pico and two sensor boards on a breadboard, wired to pH and EC probes

A Raspberry Pi Pico reads two analog probes, pH and EC, each through its own signal-conditioning board (the blue trimmers set offset and gain during calibration), with the BNC-terminated probes dropping into the reservoir.

The enclosure started as a hand sketch (board spacing, standoffs, cable-gland cut-outs), got modelled in Tinkercad, and became a printed box sized to the exact hardware (that’s the sketch-and-box up top).

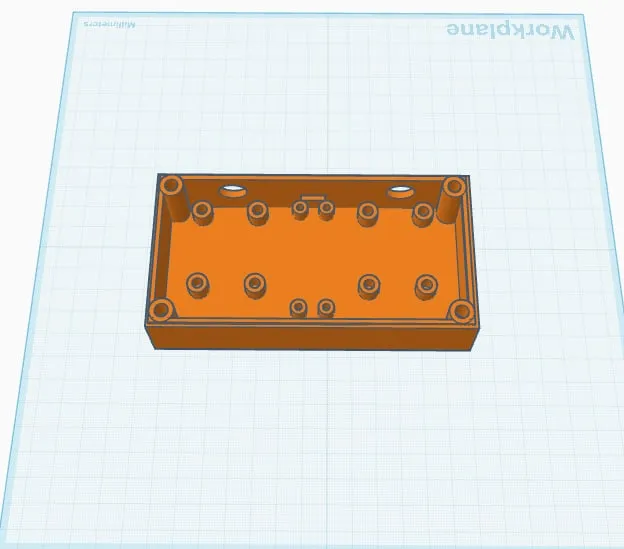

The PicoPH enclosure modelled in Tinkercad, with internal standoffs for the Pico and sensor boards

Then it went to work, watching the towers:

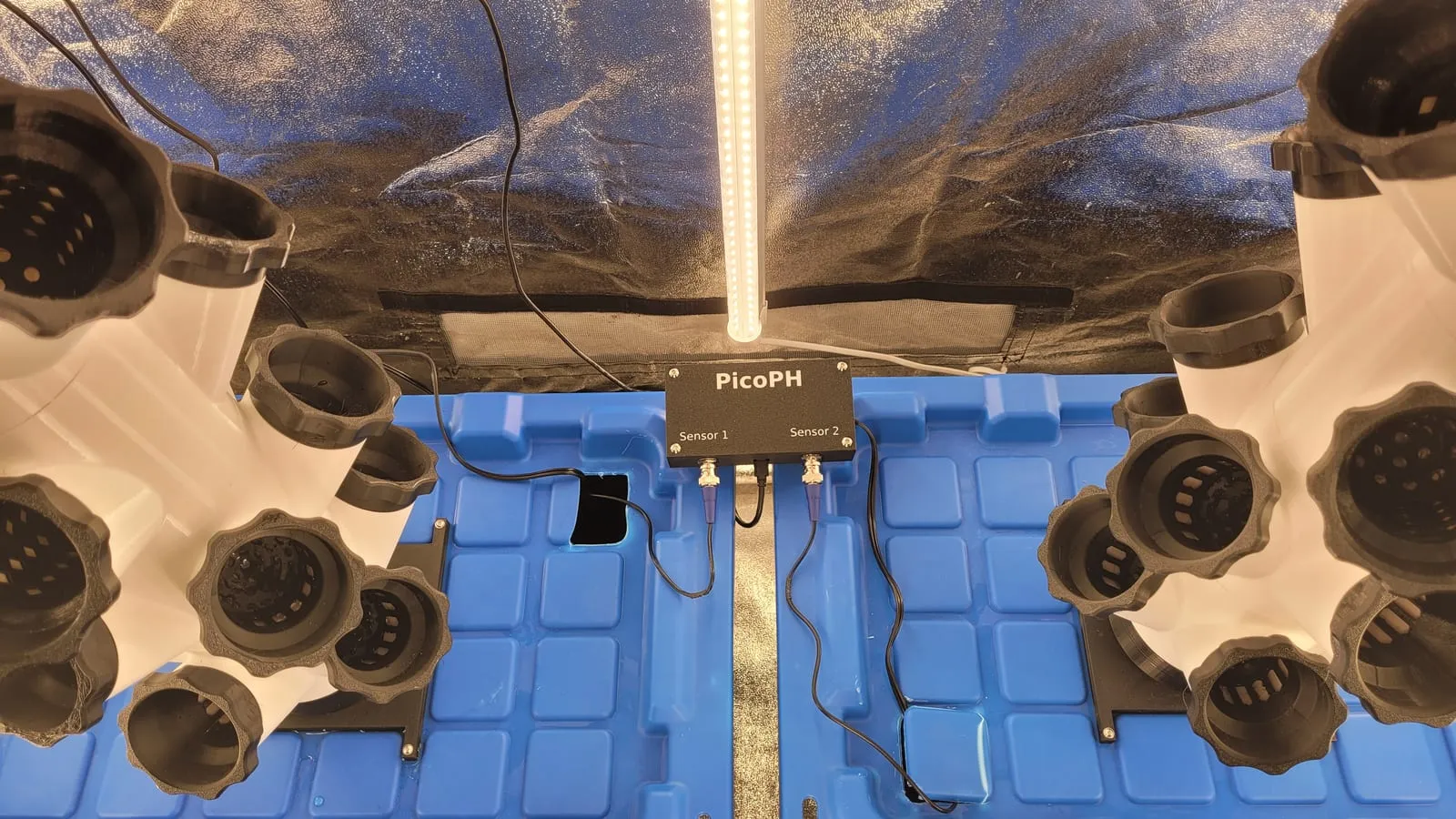

The finished PicoPH unit installed beside the 3D-printed hydroponic grow towers

It’s the project that ties the three hobbies together: a bit of electronics, a bit of 3D printing, in service of the garden.
